MonoGame.Extended.Particles is ported from the Mercury Particle Engine. A particle engine helps you simulate phenomena, which are otherwise very hard to reproduce with conventional rendering techniques. examples include replicating fire, explosions, smoke, moving water, sparks.

Quick start​

We start by including the required namespaces.

using MonoGame.Extended;
using MonoGame.Extended.Particles;
using MonoGame.Extended.Particles.Modifiers;
using MonoGame.Extended.Particles.Modifiers.Containers;
using MonoGame.Extended.Particles.Modifiers.Interpolators;
using MonoGame.Extended.Particles.Profiles;
using MonoGame.Extended.TextureAtlases;

Next, we declare our ParticleEffect and Texture2D fields

private ParticleEffect _particleEffect;
private Texture2D _particleTexture;

Which we assign in the LoadContent function

_particleTexture = new Texture2D(GraphicsDevice, 1, 1);
_particleTexture.SetData(new[] { Color.White });

TextureRegion2D textureRegion = new TextureRegion2D(_particleTexture);
_particleEffect = new ParticleEffect(autoTrigger: false)
{
    Position = new Vector2(400, 240),
    Emitters = new List<ParticleEmitter>
    {
        new ParticleEmitter(textureRegion, 500, TimeSpan.FromSeconds(2.5),
            Profile.BoxUniform(100,250))
        {
            Parameters = new ParticleReleaseParameters
            {
                Speed = new Range<float>(0f, 50f),
                Quantity = 3,
                Rotation = new Range<float>(-1f, 1f),
                Scale = new Range<float>(3.0f, 4.0f)
            },
            Modifiers =
            {
                new AgeModifier
                {
                    Interpolators =
                    {
                        new ColorInterpolator
                        {
                            StartValue = new HslColor(0.33f, 0.5f, 0.5f),
                            EndValue = new HslColor(0.5f, 0.9f, 1.0f)
                        }
                    }
                },
                new RotationModifier {RotationRate = -2.1f},
                new RectangleContainerModifier {Width = 800, Height = 480},
                new LinearGravityModifier {Direction = -Vector2.UnitY, Strength = 30f},
            }
        }
    }
};

Since _particleTexture and _particleEffect are not loaded with the ContentManager, we need to dispose them in UnloadContent.

_particleTexture.Dispose();
_particleEffect.Dispose();

Finaly, we add implement Update and Draw

protected override void Update(GameTime gameTime)
{
    _particleEffect.Update((float)gameTime.ElapsedGameTime.TotalSeconds);
    base.Update(gameTime);
}

protected override void Draw(GameTime gameTime)
{
    GraphicsDevice.Clear(Color.Black);

    _spriteBatch.Begin(blendState: BlendState.AlphaBlend);
    _spriteBatch.Draw(_particleEffect);
    _spriteBatch.End();

    base.Draw(gameTime);
}

Profiles​

Profiles determine how the particles are distributed

CircleProfile​

The Circle profile distributes the particles within a circle

CircleRadiation​

Determines the heading direction of the particles

Code

Profile.Circle(150, Profile.CircleRadiation.In)

circleProfileIn

PointProfile​

The Point profile distributes the particles at the same point

Code

Profile.Point()

PointProfile

BoxProfile​

The Box profile distributes the particles over the edge of a box

note

The box profile distributed 25% of the particle on each edge. If you have a rectangular shape and you want an even distribution, use the BoxUniform profile

Code

Profile.Box(150,150)

BoxProfile

BoxUniformProfile​

The BoxUniform profile evenly distributes the particles over the edge of a box

Code

Profile.BoxUniform(150,300)

BoxUniformProfile

BoxFillProfile​

The BoxFill profile distributes the particles within a box

Code

Profile.BoxFill(150,150)

BoxFillProfile

LineProfile​

The Line profile distributes the particles over a line

Code

Profile.Line(new Vector2(1,1), 150)

LineProfile

RingProfile​

The Ring profile distributes the particles over a line

CircleRadiation​

Determines the heading direction of the particles

Code

Profile.Ring(150, Profile.CircleRadiation.In)

RingProfile

SprayProfile​

The Spray profile prays the particles in a given direction

Code

Profile.Spray(new Vector2(1,1), 2f )

SprayProfile

Modifiers​

AgeModifier​

The AgeModifier Uses Interpolators to modify the particle over its lifespan.

Code

new AgeModifier
{
    Interpolators =
    {
        new ColorInterpolator
        {
            StartValue = Color.Yellow.ToHsl(),
            EndValue = Color.Blue.ToHsl()
        }
    }
}

Result

AgeModifier

CircleContainerModifier​

This Modifier makes the particles collide with a circle container.

Radius​

The radius of the CircleContainer.

Inside​

Whether the particles should stay inside the of outside the container

RestitutionCoefficient​

The bounces back force of the particles

Code

new CircleContainerModifier()
{
    Radius = 50,
    Inside = true,
    RestitutionCoefficient = 0.2f
}

Result

CircleContainerModifier

RectangleContainerModifier​

This Modifier makes the particles collide with a rectangle container.

Width​

Width of the container

Height​

Height of the container

RestitutionCoefficient​

The bounces back force of the particles

Code

new RectangleContainerModifier
{
    Width = 150,
    Height = 150,
    RestitutionCoefficient = 0.2f,
}

Result

RectangleContainerModifier

RectangleLoopContainerModifier​

This Modifier keeps the particles inside a rectangular container by looping them around.

Width​

Width of the container

Height​

Height of the container

Code

new RectangleLoopContainerModifier
{
    Width = 150,
    Height = 150
}

Result

RectangleLoopContainerModifier

DragModifier​

The DragModifier simulates the effects of the particle passing through a medium such as water, air, etc., which exert a force (drag) which slows the particles down.

DragCoefficient​

The drag coefficient of the particle.

Density​

The density of the medium through which the particle is moving.

Code

new DragModifier
{
    Density = 1f, DragCoefficient = 1f
}

Result

DragModifier

LinearGravityModifier​

LinearGravityModifier applies linear gravity to the particle

Direction​

The direction of gravity.

Strength​

Strength of the gravity

Code

new LinearGravityModifier
{
    Direction = new Vector2(0,-1),
    Strength = 30f
}

Result

DragModifier

OpacityFastFadeModifier​

OpacityFastFadeModifier fades the particles over the span of their lifetime

Code

new OpacityFastFadeModifier()

Result

DragModifier

RotationModifier​

The RotationModifier rotates the particles by a given RotationRate

Code

new RotationModifier
{
    RotationRate = 5f
}

Result

RotationModifier

VelocityColorModifier​

The VelocityColorModifier Colors the particle by its velocity

StationaryColor​

The color when the velocity is 0

VelocityColor​

The particle color when it reaches the VelocityThreshold

VelocityThreshold​

The threshold of the velocity

Code

new VelocityColorModifier
{
    StationaryColor = Color.Green.ToHsl(),
    VelocityColor = Color.Blue.ToHsl(),
    VelocityThreshold = 80f
}

Result

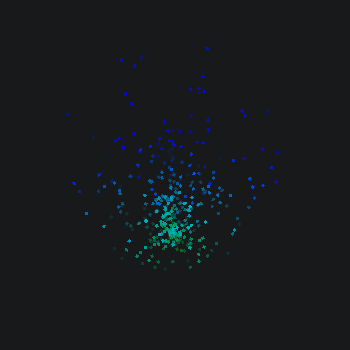

VelocityColorModifier

VelocityModifier​

The VelocityModifier Uses Interpolators to modify the particles depending on their velocity.

Code

new VelocityModifier()
{
    Interpolators =
    {
        new ColorInterpolator
        {
            StartValue = Color.Green.ToHsl(),
            EndValue = Color.Blue.ToHsl()
        }
    },
    VelocityThreshold = 80f
}

Result

VelocityModifier

VortexModifier​

This VortexModifier moves the particles in a whirling vortex. This can be used for creating wind effects, etc.

Mass​

The mass of the vortex

Position​

The position of the vortex relative to the ParticleEmitter

Code

new VortexModifier()
{
    Mass = 10f,
    MaxSpeed = 1f,
    Position = new Vector2(0,-150)
},
new VortexModifier()
{
    Mass = 10f,
    MaxSpeed = 1f,
    Position = new Vector2(-150,0)
}

Result

VortexModifier

Interpolators​

Interpolators are used by AgeModifier and VelocityModifier to interpolate particle properties

ColorInterpolator​

The ColorInterpolator Interpolates from a Start to an End color.

Code

new AgeModifier
{
    Interpolators =
    {
        new ColorInterpolator
        {
            StartValue = Color.Yellow.ToHsl(),
            EndValue = Color.Blue.ToHsl()
        }
    }
}

Result

ColorInterpolator

HueInterpolator​

The HueInterpolator Interpolates from a Start to an End Hue.

note

Make sure to set the particle color

Code

new AgeModifier()
{
    Interpolators = new List<Interpolator>()
    {
        new HueInterpolator { StartValue = 0f, EndValue = 360f }
    }
}

Result

HueInterpolator

OpacityInterpolator​

The OpacityInterpolator Interpolates from a Start to an End Opacity.

Code

new AgeModifier()
{
    Interpolators = new List<Interpolator>()
    {
        new OpacityInterpolator { StartValue = -2f, EndValue = 1f }
    }
}

Result

OpacityInterpolator

RotationInterpolator​

The RotationInterpolator Interpolates from a Start to an End Rotation.

Code

new AgeModifier()
{
    Interpolators = new List<Interpolator>()
    {
        new RotationInterpolator { StartValue = 0f, EndValue = 5f }
    }
}

Result

RotationInterpolator

ScaleInterpolator​

The ScaleInterpolator Interpolates from a Start to an End Scale.

Code

new AgeModifier()
{
    Interpolators = new List<Interpolator>()
    {
        new ScaleInterpolator { StartValue = new Vector2(1,1), EndValue = new Vector2(10,10) }
    }
}

Result
