MonoGame Extended Particle System: Emission Profiles Guide

Up to date

This page is up to date for MonoGame.Extended 5.1.0. If you find outdated information, please open an issue.

The visual character of any particle effect starts with where and how particles are initially positioned when they are created. Emission profiles control these fundamental properties, defining the spatial distribution patterns that determine whether your particles create a concentrated explosion, a flowing waterfall, a spreading flame, or any other emission pattern you can imagine.

MonoGame Extended provides eight emission profiles, each designed for specific visual effects and use cases. Understanding how each profile works enables you to create precisely the particle behaviors your game requires.

In this guide, you will learn how to use each emission profile effectively and apply them to create compelling visual effects.

By the end of this guide, you will understand:

• How each emission profile calculates particle positions and directions
• The best use cases and visual effects for each profile type
• Configuration options and parameters for each profile

Profile System Architecture

All emission profiles inherit from an abstract base class that defines a single method:

public abstract class Profile
{
    public abstract unsafe void GetOffsetAndHeading(Vector2* offset, Vector2* heading);
}

This method determines two fundamental properties for each new particle:

• Offset: Where the particle appears relative to the emitter's position
• Heading: The initial direction the particle will travel (normalized to unit length)

This separation allows profiles to control both spatial distribution and directional patterns independently. The actual particle speed is determined by the Speed parameter in ParticleReleaseParameters.

Available Emission Profiles

Point Profile

The PointProfile is the simplest emission pattern where all particles spawn at the exact emitter location and move in random directions, creating radial dispersion effects perfect for explosions, sparks, or basic burst patterns.

Profile.Point()

This profile requires no configuration and has the best performance characteristics, making it ideal for high particle count effects.

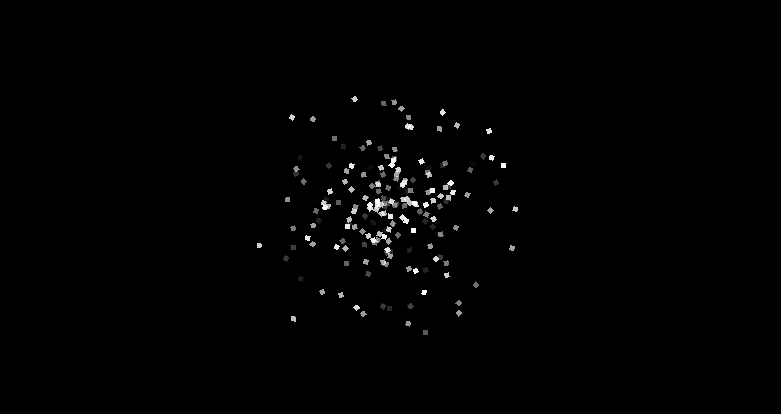

PointProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(1000)
{
    Profile = Profile.Point(),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(15, 25),
        Speed = new ParticleFloatParameter(50.0f, 150.0f)
    }
};

Line Profile

The LineProfile distributes particles along a line segment with configurable direction control. Particles spawn at random positions along the line and can move in various patterns depending on the radiation mode.

// Basic version with random directions
Profile.Line(Vector2 axis, float length)

// Advanced version with direction control
Profile.Line(Vector2 axis, float length, LineRadiation radiate, Vector2 direction)

Parameter	Description
axis	The direction vector of the line (will be normalized internally)
length	The total length of the line segment
radiate	Controls how particle headings relate to the line orientation
direction	The emission direction vector for direction radiation modes. This value is ignored if the radiation mode is LineRadiate.None, LineRadiate.PerpendicularUp or LineRadiate.PerpendicularDown

Line Radiation	Description	Visual Effect
LineRadiation.None	Random directions regardless of line angle
LineRadiation.Directional	All particles move in the specified direction
LineRadiation.PerpendicularUp	Particles move perpendicular upward from line
LineRadiation.PerpendicularDown	Particles move perpendicular downward from line

LineProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(1500)
{
    Profile = Profile.Line(Vector2.UnitX, 800.0f, LineRadiation.Directional, Vector2.UnitY),
    LifeSpan = 10.0f,
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(10, 15),
        Speed = new ParticleFloatParameter(25.0f, 75.0f)
    }
};

Circle Profile

The CircleProfile distributes particles within a circular area with radiation patterns that control movement direction relative to the circle center.

Profile.Circle(float radius, CircleRadiation radiate)

Parameter	Description
radius	The radius of the circular distribution area
radiate	Controls how particle headings relate to their positions

Circle Radiation	Description	Visual Effect

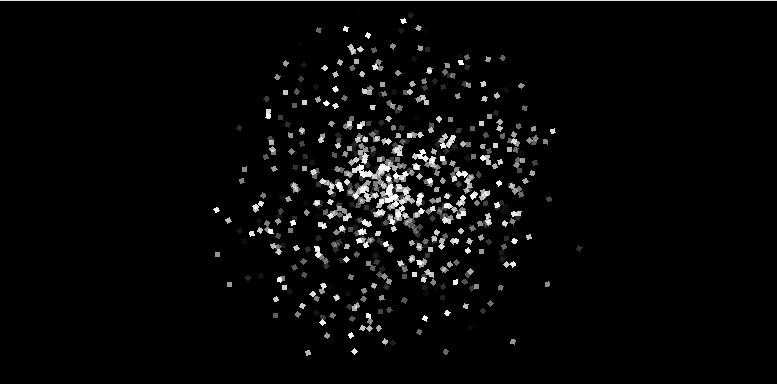

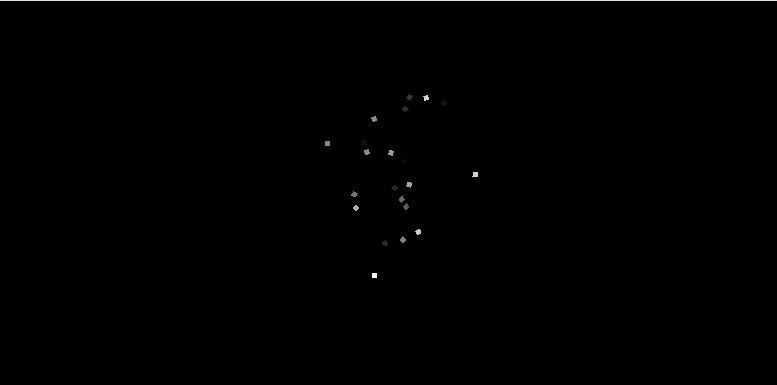

CircleRadiation.None	Random movement directions for chaotic dispersal

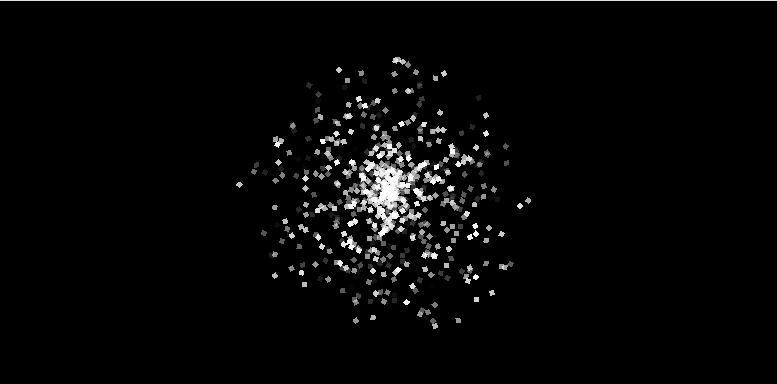

CircleRadiation.In	Particles move toward center for implosion effects
CircleRadiation.Out	Particles move away from center for explosion effects

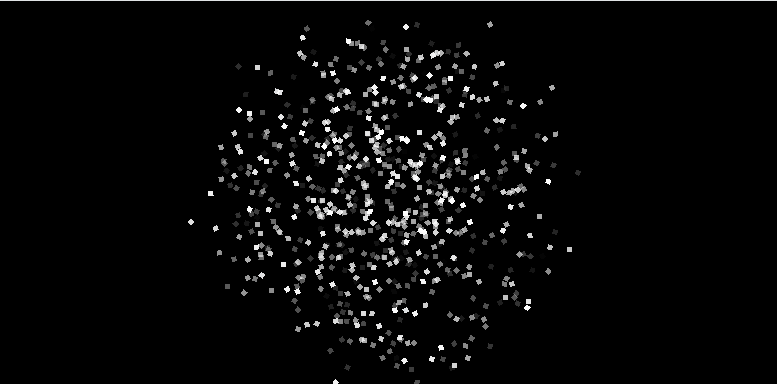

CircleProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(1500)
{
    Profile = Profile.Circle(100.0f, CircleRadiation.Out),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(20, 30),
        Speed = new ParticleFloatParameter(75.0f, 200.0f)
    }
};

Ring Profile

The RingProfile works like Circle Profile but constrains particles to the circle's perimeter only, creating hollow effects ideal for shockwaves and energy rings.

Profile.Ring(float radius, CircleRadiation radiate)

Parameter	Description
radius	The radius of the ring
radiate	Controls how particle headings relate to their positions

note

Uses the same radiation patterns as Circle Profile but with particles starting only on the circumference rather than within the entire circular area.

Circle Radiation	Description	Visual Effect

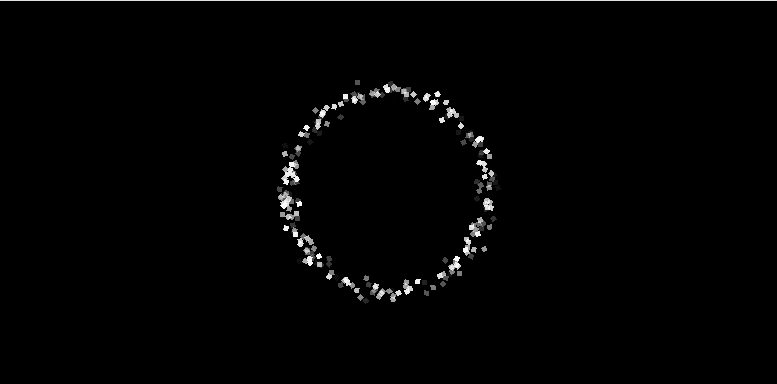

CircleRadiation.None	Random movement directions for chaotic dispersal
CircleRadiation.In	Particles move toward center for implosion effects
CircleRadiation.Out	Particles move away from center for explosion effects

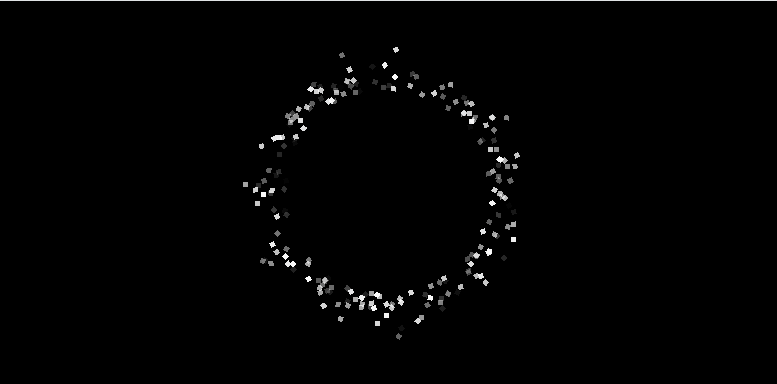

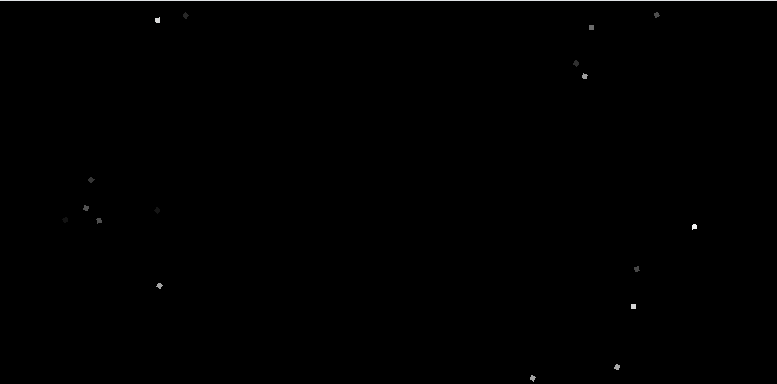

RingProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(800)
{
    Profile = Profile.Ring(80.0f, CircleRadiation.Out),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(25, 35),
        Speed = new ParticleFloatParameter(150.0f, 250.0f)
    }
};

Box Profile

The BoxProfile distributes particles along the edges of a rectangle, giving each edge equal probability regardless of length. This means each of the four edges receives 25% of the particles.

Profile.Box(float width, float height)

Parameter	Description
width	The width of the rectangular perimeter
height	The height of the rectangular perimeter

warning

For non-square rectangular perimeters, this profile creates uneven particle density since shorter edges receive the same number of particles as longer ones.

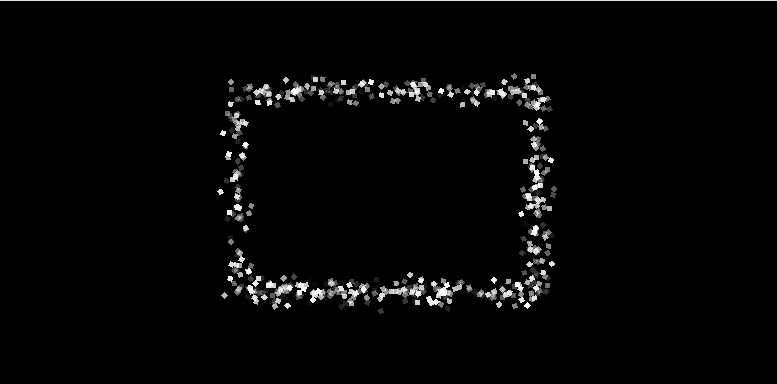

BoxProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(1200)
{
    Profile = Profile.Box(300.0f, 200.0f),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(8, 12),
        Speed = new ParticleFloatParameter(10.0f, 20.0f)
    }
};

BoxUniform Profile

The BoxUniformProfile improves upon BoxProfile by distributing particles proportionally to edge length, creating uniform particle density around the entire perimeter.

Profile.BoxUniform(float width, float height)

Parameter	Description
width	The width of the rectangular perimeter
height	The height of the rectangular perimeter

tip

Use this instead of BoxProfile when you need even distribution on rectangular shapes, as it allocates particles based on the relative length of each edge.

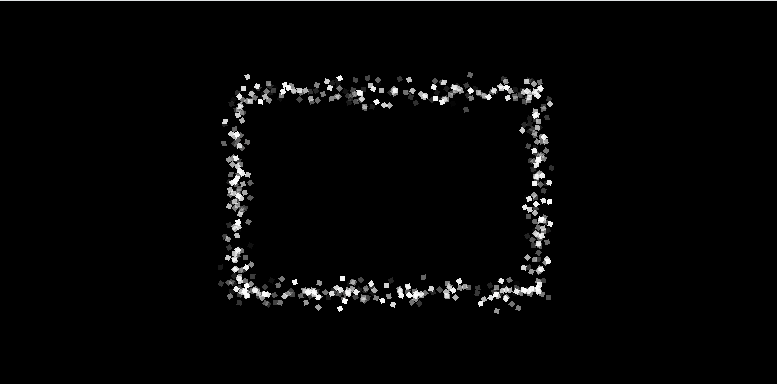

BoxUniformProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(1200)
{
    Profile = Profile.BoxUniform(300.0f, 200.0f),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(8, 12),
        Speed = new ParticleFloatParameter(10.0f, 20.0f)
    }
};

BoxFill Profile

The BoxFillProfile fills the entire rectangular area with particles rather than just the perimeter, perfect for area effects like smoke clouds, magical fields, or environmental atmospheric effects.

Profile.BoxFill(float width, float height)

Parameter	Description
width	The width of the rectangular perimeter
height	The height of the rectangular perimeter

Particles are randomly distributed throughout the rectangular area with random heading directions.

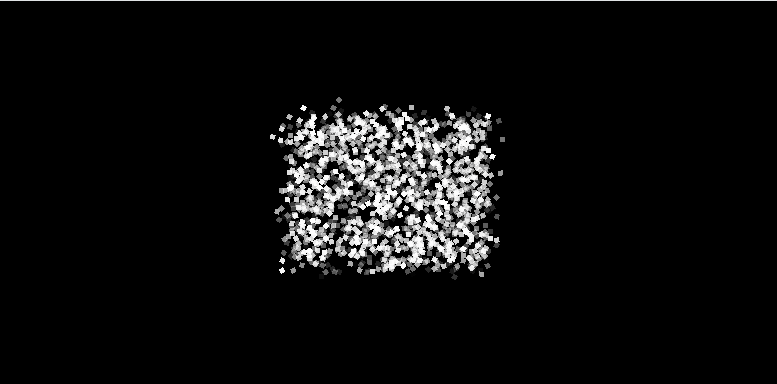

BoxFillProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(2000)
{
    Profile = Profile.BoxFill(200.0f, 150.0f),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(25, 35),
        Speed = new ParticleFloatParameter(5.0f, 25.0f)
    }
};

Spray Profile

The SprayProfile emits particles from a single point in a directional cone, perfect for focused effects like flamethrowers, water hoses, or weapon fire.

Profile.Spray(Vector2 direction, float spread)

Parameter	Description
direction	The central direction vector of the spray cone
spread	The angular width of the spray cone in radians

Spread Angle	Description	Visual Effect

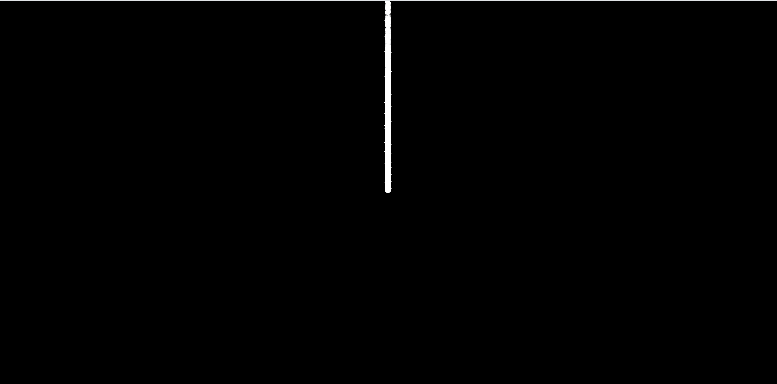

0 radians	Perfectly focused beam

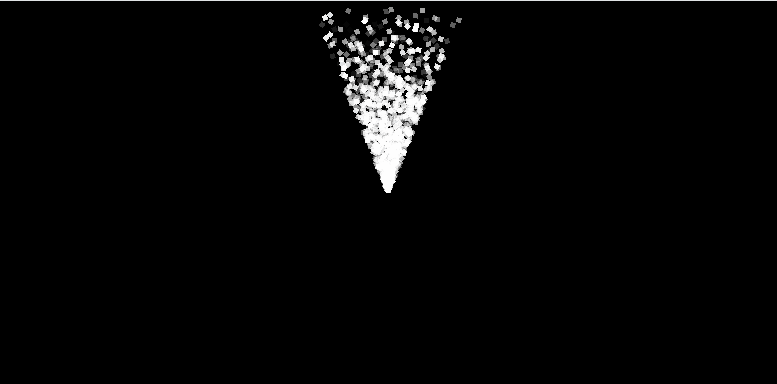

π/4 (45°)	Narrow cone for flamethrowers

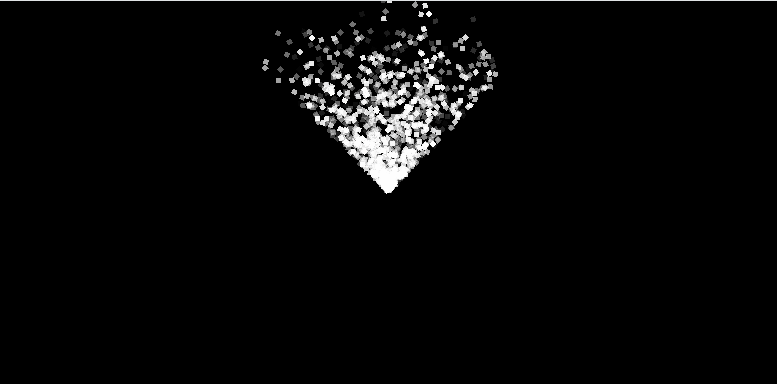

π/2 (90°)	Medium spread for general effects

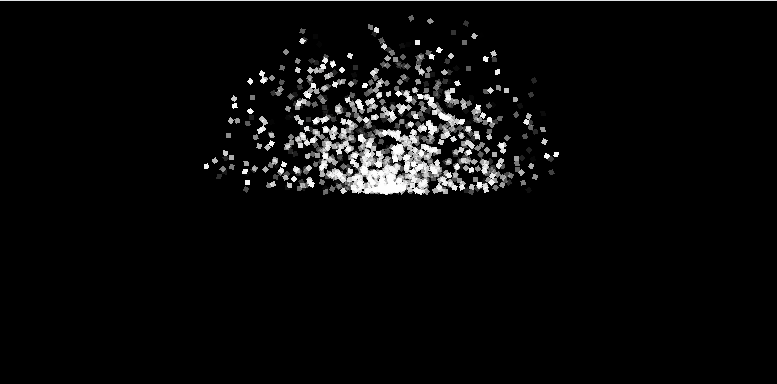

π (180°)	Wide semicircle fan

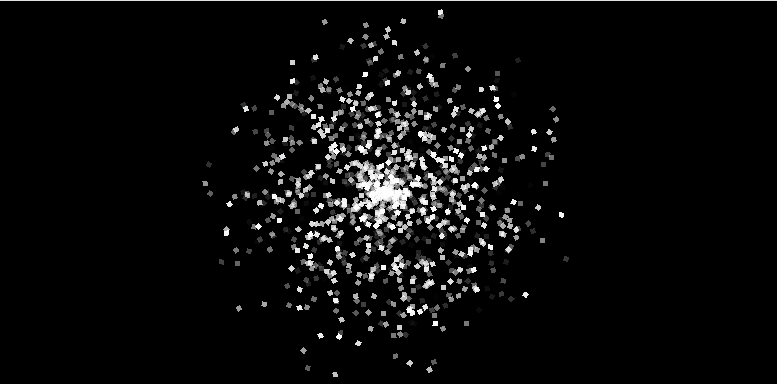

2π radians (360°)	Full circle, equivalent to PointProfile behavior

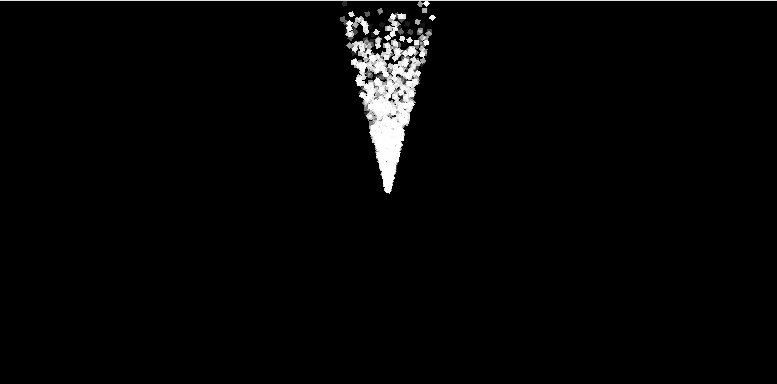

SprayProfile Code Example

ParticleEmitter emitter = new ParticleEmitter(2000)
{
    Profile = Profile.Spray(-Vector2.UnitY, MathF.PI / 6),
    Parameters = new ParticleReleaseParameters
    {
        Quantity = new ParticleInt32Parameter(15, 25),
        Speed = new ParticleFloatParameter(100.0f, 200.0f)
    }
};

Performance Considerations

Different profiles have varying computational complexity:

• Lowest Overhead: PointProfile, BoxFillProfile - Simple random generation only
• Medium Overhead: LineProfile, BoxProfile, BoxUniformProfile - Basic arithmetic operations
• Higher Overhead: CircleProfile, RingProfile, SprayProfile - Trigonometric calculations

All profiles are suitable for real-time applications, but consider using simpler profiles for effects requiring thousands of particles.

Choosing the Right Profile

Select profiles based on the visual effect you want to achieve:

• Explosions/Bursts: PointProfile, CircleProfile (Out), RingProfile (Out)
• Environmental Effects: LineProfile, BoxFillProfile for area coverage
• Directional Effects: SprayProfile, LineProfile (Directional)
• Implosions/Suction: CircleProfile (In), RingProfile (In)
• Barriers/Fields: LineProfile, BoxProfile, BoxUniformProfile

Conclusion

Emission profiles form the foundation of particle effect design by controlling initial particle placement and movement. Each profile serves specific visual purposes while offering different performance characteristics. Understanding these profiles enables you to create appropriate particle behaviors for your specific game effects
